Filter Vessels, Microfilter VFH Series
Compact Filter Housings
VFH Series

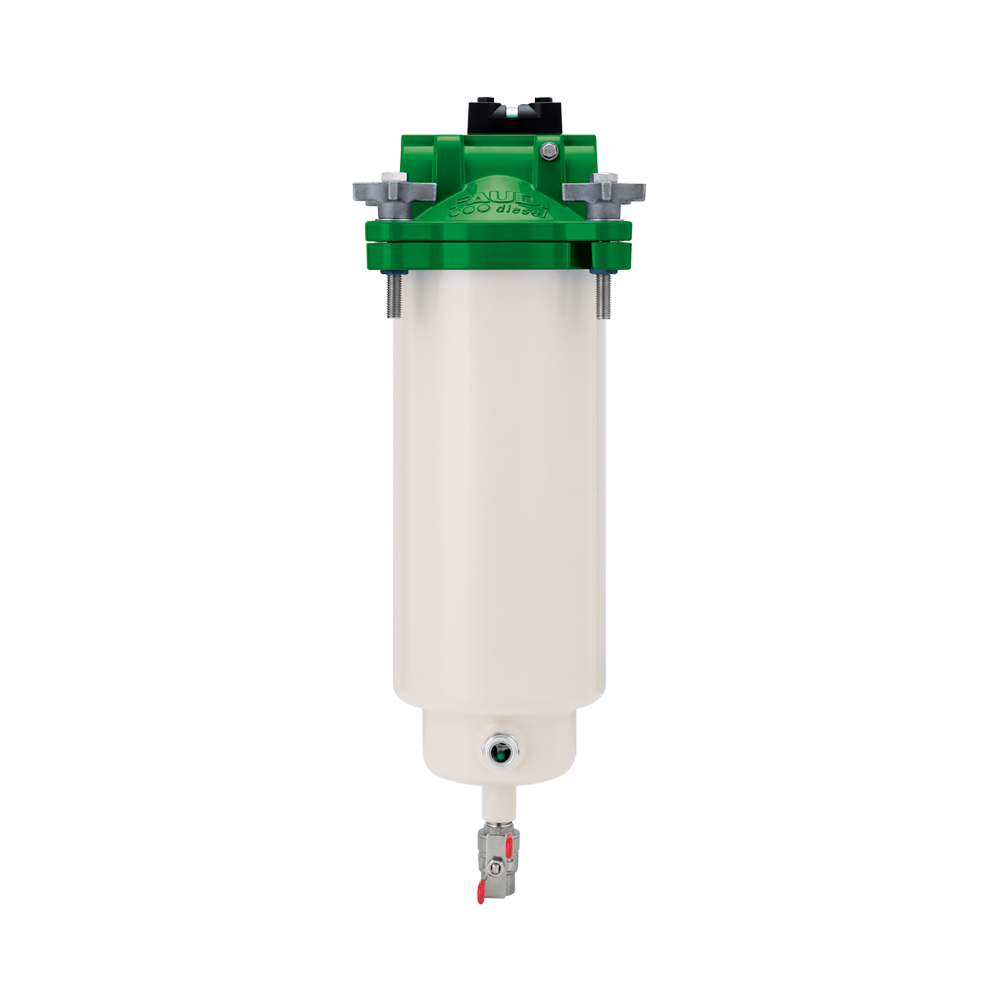

FAUDI Diesel Vertical Filter Housings (VFH) are designed to meet the tough requirements of industrial diesel applications and provide for ease of installation and service. Close monitoring of fuel quality through storage and on-board filtration is necessary to protect the sensitive injection systems of modern diesel engines.
The Vertical Filter Housing (VFH) assembly provides two element options that are available in multiple micron ratings: Coalescer/Separator and Microfilter.
The VFH system is characterised by high efficiency and easy installation. It is designed and constructed for an easy element exchange.
Benefits
- Designed to meet the toughest industrial diesel applications
- Prevent water contaminants from overloading on-board filter systems
- Prevents costly injector damage and increases operational life
Technical Data
- Design pressure: 10 bar (145 psi)
- Flow rate (maximum): Up to 189 lpm (50 USgpm)
- Operating temperature: -10°C to +50°C (14° to 122°F)
Standard Design
- Material: Die-casting aluminum head, steel filter bowl
- Components: Powder-coated components
- Cover seal: NBR (Buna-N)
- In-/Outlet port: G 1 1/2“
