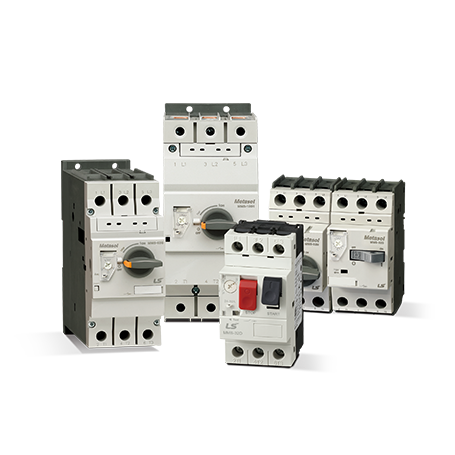

Metasol MMS

Features

  • Enhanced trip function
    • New application of MMS-32/63 trip indicator enhances the visibility of trip
  • Reinforced product reliability
    • Reinforced breaking reliability compared to existing -MEC MMS
  • Compatibility and design differentiation
    • Same external dimension with -MEC MMS
    • Consistency with sol MC by changing appearance color
  • Various protection features
    • Over load
    • Short circuit
    • Phase failure protection
  • Size
    • MMS-32D follows DIN 43880 standards

Specification

Standard type

Type Rated
operational
current Ie[A]		 Themal
release
Adjustment
range[A]		 Magnetic
release
Operating
current[A]		 Switching of 3 phase AC motors, AC-2, AC-3 400/415V
3-phase[kW](50/60Hz) 3-phase[HP](60Hz)
230V 400V 690V 230V 460V 575V Icu[kA] Icu[kA]
MMS-32D 0.16 0.1~0.16 2.3 - - 0.06 - - - 100 100
0.25 0.16~0.25 3.6 - 0.06 0.12 - - - 100 100
0.4 0.25~0.4 5.8 0.06 0.09 0.18 - - - 100 100
0.63 0.4~0.63 9.1 0.09 0.18 0.25 - - - 100 100
1 0.63~1 14.4 0.18 0.25 0.55 - - 1/2 100 100
1.6 1.~1.6 23.0 0.25 0.55 1.1 - 3/4 3/4 100 100
2.5 1.6~2.5 36.0 0.37 0.75 1.5 1/2 1 1.5 100 100
4 2.5~4 57.6 0.75 1.5 3.0 3/4 2 3 100 100
6.3 4~6.3 90.7 1.5 2.2 4.0 1.5 3 5 100 100
10 6~10 144.0 2.2 4.0 7.5 3 5 7.5 100 100
14 9~14 201.6 3.0 5.5 11 3 10 10 15 7.5
18 13~18 259.2 4.0 7.5 15 5 10 15 15 7.5
23 17~23 331.2 5.5 11 18.5 7.5 15 20 15 6
25 20~25 360.0 5.5 11 22 7.5 15 20 15 6
32 24~32 460.8 7.5 15 30 10 20 25 10 6
MMS-32S 0.16 0.1...0.16 2.1 - 0.02 - - - - 100 100
0.25 0.16...0.25 3.3 0.03 0.06 - - - - 100 100
0.4 0.25...0.4 5.2 0.06 0.09 - - - - 100 100
0.63 0.4...0.63 8.2 0.09 0.12 0.25 - - - 100 100
1 0.63...1.0 13 0.12 0.25 0.55 - 1/2 1/2 100 100
1.6 1.0...1.6 20.8 0.25 0.55 1.1 1/3 3/4 1 100 100
2.5 1.6...2.5 32.5 0.37 0.75 1.5 1/2 1½ 1½ 100 100
4 2.5...4.0 52 0.75 1.5 3 1 2 3 100 100
6 4...6 78 1.5 2.2 4 1½ 5 5 100 100
8 5...8 104 1.5 3 5.5 2 5 5 100 100
10 6...10 130 3 4 7.5 3 7½ 10 50 38
13 9...13 169 3 5.5 11 3 7½ 10 50 38
17 11...17 221 4 7.5 11 5 10 15 20 15
22 14...22 286 4 7.5 15 7½ 15 20 15 11
26 18...26 338 5.5 11 18.5 7½ 15 20 15 11
32 22...32 416 7.5 15 22 10 20 30 15 11
40 28...40 520 7.5 18.5 30 15 30 40 10 8
MMS-63S 10 6~10 130 3 4 7.5 3 7½ 10 100 100
13 9~13 169 3 5.5 11 3 7½ 10 50 38
17 11~17 221 4 7.5 11 5 10 15 25 19
22 14~22 286 4 7.5 15 7½ 15 20 25 19
26 18~26 338 5.5 11 18.5 10 20 25 25 19
32 22~32 416 7.5 15 22 10 25 30 25 19
40 28~40 520 7.5 18.5 30 15 30 40 25 19
50 34~50 650 11 22 45 15 40 50 25 19
63 45~63 819 15 30 55 20 50 60 25 19
65 47~65 845 15 30 55 20 50 60 25 19
MMS-100S 17 11~17 221 4 7.5 11 5 10 15 50 38
22 14~22 286 4 7.5 15 7½ 15 20 50 38
26 18~26 338 5.5 11 18.5 10 20 25 50 38
32 22~32 416 7.5 15 22 10 25 30 50 38
40 28~40 520 7.5 18.5 30 15 30 40 50 38
50 34~50 650 11 22 45 15 40 50 50 38
63 45~63 819 15 30 55 20 50 60 50 38
75 55~75 975 22 37 63 25 60 75 50 38
90 70~90 1170 30 45 75 30 75 100 50 38
100 80~100 1300 30 45 90 40 75 100 50 38


High breaking type

Type Rated
operational
current Ie[A]		 Themal
release
Adjustment
range[A]		 Magnetic
release
Operating
current[A]		 Switching of 3 phase AC motors, AC-2, AC-3 400/415V
3-phase[kW](50/60Hz) 3-phase[HP](60Hz)
230V 400V 690V 230V 460V 575V Icu[kA] Icu[kA]
MMS-32H 0.16 0.1...0.16 2.1 - 0.02 - - - - 100 100
0.25 0.16...0.25 3.3 0.03 0.06 - - - - 100 100
0.4 0.25...0.4 5.2 0.06 0.09 - - - - 100 100
0.63 0.4...0.63 8.2 0.09 0.12 0.25 - - - 100 100
1 0.63...1.0 13 0.12 0.25 0.55 - 1/2 1/2 100 100
1.6 1.0...1.6 20.8 0.25 0.55 1.1 1/3 3/4 1 100 100
2.5 1.6...2.5 32.5 0.37 0.75 1.5 1/2 1½ 1½ 100 100
4 2.5...4.0 52 0.75 1.5 3 1 2 3 100 100
6 4...6 78 1.5 2.2 4 1½ 5 5 100 100
8 5...8 104 1.5 3 5.5 2 5 5 100 100
10 6...10 130 3 4 7.5 3 7½ 10 100 100
13 9...13 169 3 5.5 11 3 7½ 10 100 100
17 11...17 221 4 7.5 11 5 10 15 50 38
22 14...22 286 4 7.5 15 7½ 15 20 50 38
26 18...26 338 5.5 11 18.5 7½ 15 20 50 38
32 22...32 416 7.5 15 22 10 20 30 50 38
40 28~40 520 7.5 18.5 30 15 30 40 40 30
MMS-63H 10 6~10 130 3 4 7.5 3 7½ 10 100 100
13 9~13 169 3 5.5 11 3 7½ 10 100 100
17 11~17 221 4 7.5 11 5 10 15 50 50
22 14~22 286 4 7.5 15 7½ 15 20 50 50
26 18~26 338 5.5 11 18.5 10 20 25 50 50
32 22~32 416 7.5 15 22 10 25 30 50 50
40 28~40 520 7.5 18.5 30 15 30 40 50 50
50 34~50 650 11 22 45 15 40 50 50 50
63 45~63 819 15 30 55 20 50 60 50 50
65 47~65 845 15 30 55 20 50 60 35 27
MMS-100 17 11~17 221 4 7.5 11 5 10 15 100 100
22 14~22 286 4 7.5 15 7½ 15 20 100 50
26 18~26 338 5.5 11 18.5 10 20 25 100 50
32 22~32 416 7.5 15 22 10 25 30 100 50
40 28~40 520 7.5 18.5 30 15 30 40 100 50
50 34~50 650 11 22 45 15 40 50 100 50
63 45~63 819 15 30 55 20 50 60 100 50
75 55~75 975 22 37 63 25 60 75 75 50
90 70~90 1170 30 45 75 30 75 100 75 50
100 80~100 1300 30 45 90 40 75 100 75 50


Instantaneous type

Type Rated
operational
current Ie[A]		 Themal
release
Adjustment
range[A]		 Magnetic
release
Operating
current[A]		 Switching of 3 phase AC motors, AC-2, AC-3 400/415V
3-phase[kW](50/60Hz) 3-phase[HP](60Hz)
230V 400V 690V 230V 400V 575V Icu[kA] Icu[kA]
MMS-32HI 0.16 - 2.1 - 0.02 - - - - 100 100
0.25 - 3.3 0.03 0.06 - - - - 100 100
0.4 - 5.2 0.06 0.09 - - - - 100 100
0.63 - 8.2 0.09 0.12 0.25 - - - 100 100
1 - 13 0.12 0.25 0.55 - 1/2 1/2 100 100
1.6 - 20.8 0.25 0.55 1.1 1/3 3/4 1 100 100
2.5 - 32.5 0.37 0.75 1.5 1/2 1½ 1½ 100 100
4 - 52 0.75 1.5 3 1 2 3 100 100
6 - 78 1.5 2.2 4 1½ 5 5 100 100
8 - 104 1.5 3 5.5 2 5 5 100 100
10 - 130 3 4 7.5 3 7½ 10 100 100
13 - 169 3 5.5 11 3 7½ 10 100 100
17 - 221 4 7.5 11 5 10 15 50 38
22 - 286 4 7.5 15 7½ 15 20 50 38
26 - 338 5.5 11 18.5 7½ 15 20 50 38
32 - 416 7.5 15 22 10 20 30 50 38
40 - 520 7.5 18.5 30 15 30 40 40 30
MMS-63HI 10 - 130 3 4 7.5 3 7½ 10 100 100
13 - 169 3 5.5 11 3 7½ 10 100 100
17 - 221 4 7.5 11 5 10 15 50 50
22 - 286 4 7.5 15 7½ 15 20 50 50
26 - 338 5.5 11 18.5 10 20 25 50 50
32 - 416 7.5 15 22 10 25 30 50 50
40 - 520 7.5 18.5 30 15 30 40 50 50
50 - 650 11 22 45 15 40 50 50 50
63 - 819 15 30 55 20 50 60 50 50
65 - 845 15 30 55 20 50 60 35 27
MMS-100HI 17 - 221 4 7.5 11 5 10 15 100 100
22 - 286 4 7.5 15 7½ 15 20 100 50
26 - 338 5.5 11 18.5 10 20 25 100 50
32 - 416 7.5 15 22 10 25 30 100 50
40 - 520 7.5 18.5 30 15 30 40 100 50
50 - 650 11 22 45 15 40 50 100 50
63 - 819 15 30 55 20 50 60 100 50
75 - 975 22 37 63 25 60 75 75 50
90 - 1170 30 45 75 30 75 100 75 50
100 - 1300 30 45 90 40 75 100 75 50
