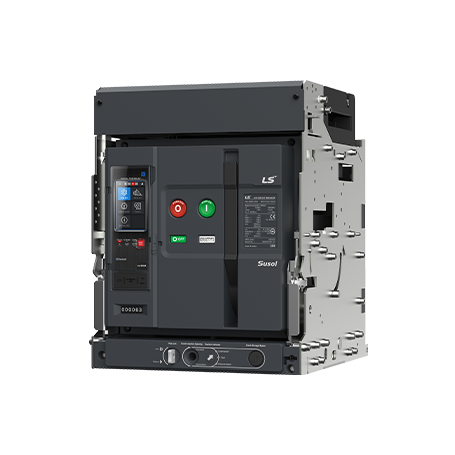

Susol UL ACB ( Airc Circuit Breaker )
Product Overview
Susol UL ACB series are UL listed and ANSI certified low-voltage power air circuit breaker UA series. Up to 6000A, Susol UL ACB provides a full line-up of 3 compact frame sizes, and enables users to design panels of optimal volume.
Benefits
- Modular design and compact size to satisfy the need for compact sized panels.
- Interchangeable trip unit and rating plug : Easy to modify rated current without CT replacement.
- User convenience : Various connection types for main circuit terminals and easy installation of accessories.
- Intelligent trip relay provided: Various advanced functions for protection, measurement, diagnosis, analysis, and communication.
Main specification
Ratings : up to 6000A
Rated short circuit current : up to 130kA/508Vac
N phase current conduction capacity : 100%
Standards : UL 1066, ANSI C37
Rated short circuit current : up to 130kA/508Vac
N phase current conduction capacity : 100%
Standards : UL 1066, ANSI C37
